New!
J-LOC NRD1 Style Retrofit Quick Change Jaw.
Possibly The Most Versatile Retro-Fit Quick Change Chuck Jaw On The Market!

Available For 8",10", and 12" 3-Jaw Self-Centering Scroll Chucks
 with American Standard Tongue and Groove Jaws

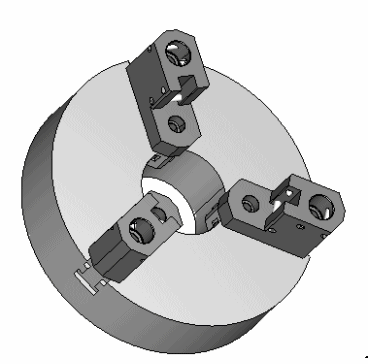

O. D. Holding From
 1/2" Diameter To 10 1/2"Diameter

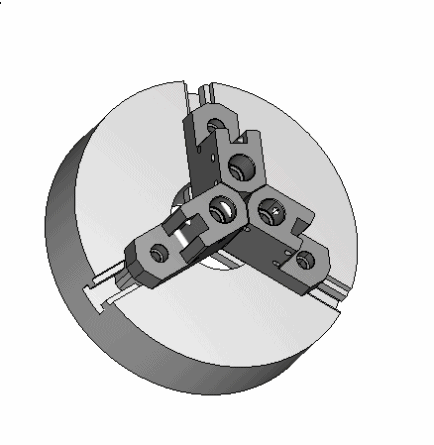

on a 12" 3-jaw Scroll Chuck		 I. D. Holding From
2 3/8" Diameter To 10 1/2"Diameter

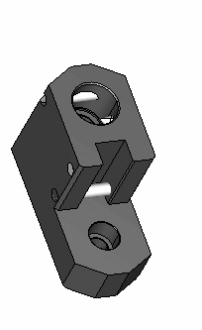

on a 12" 3-jaw Scroll Chuck		  One Master Jaw
 Does It All!
Easy to preload for machining of inserts!
Click for preloading demo for boring and turning of inserts

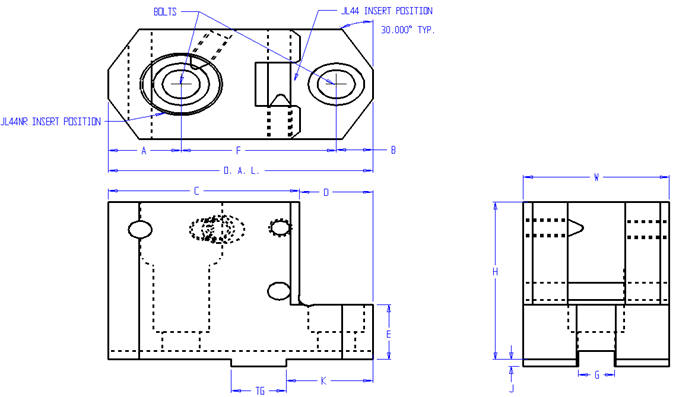

DIMENSIONS AND SPECIFICATIONS

J-LOC
Part number		 A B C D E F G H J K TG W BOLT
SIZE		 O.A.L. NR
INSERTS		 TONGUE &
GROOVE
INSERTS		 PRICE
PER
MASTER
JAW
JL8ASNRD1 .875 .438 2.281 .782 .875 1.750 .312 2.500 .125 1.062 .499 1.750 .375 3.062 JL33NR JL33 $225.00
JL10ASNRD1 1.000 .500 2.625 1.000 1.000 2.125 .501 2.875 .125 1.188 .749 2.000 1/2 3.625 JL44NR JL44 $245.00
JL12ASNRD1 1.000 .500 2.625 1.375 1.000 2.500 .501 2.875 .125 1.375 .749 2.000 1/2 4.000 JL44NR JL44 $270.000
JL15ASNRD1 1.375 1.125 3.781 1.719 1.500 3.000 .500 4.125 .125 2.250 .749 2.750 .625 5.500 JL77NR JL77 $450.00
