J-LOC 16C Dead Length Expanding I. D. Collets

J-LOC 16C Expanding Dead Length I. D. Collets
"The Answer to Inside Diameter Workholding"

No Machining Necessary!
No assembly Necessary!
No Screws To Break!
Virtually As Rigid As Your O. D. Collets!

J-LOC 16 Pull Type Expanding I. D. Collets With Exact Length Control
Work Part Length Does Not Vary If Clamped Inside Diameter Varies In Size!

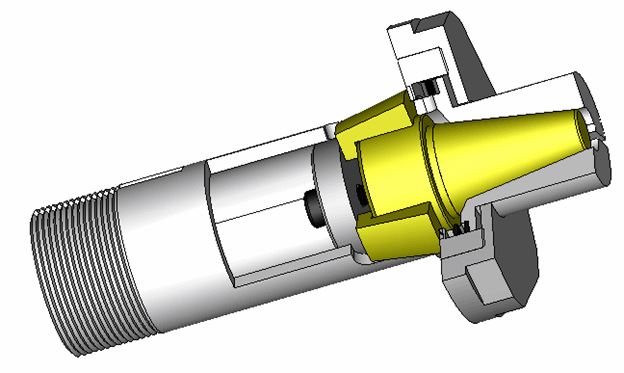

J-LOC 16C Pull Type I. D. Collet With
Exact Length Controll

The Expansion Plug And Pressure Segments Are Titanium Nitride Coated for Long Life

J-LOC NUMBER	*****SIZE AN EXACT SIZE (+) OR (-) .001” MUST BE SPECIFIED (SEE EXPLANATION BELOW)**	CRITICAL DIMENSIONS
J-LOC NUMBER		O.A.L.	WIDTH	GAGE LENGTH	PRICE
JL16CPD500	.500 - .624	5.500	0.500	0.468	$590.00
JL16CPD625	.625 -.749	5.625	0.625	0.468	$590.00
JL16CPD750	.750 - .874	5.750	0.750	0.468	$590.00
JL16CPD875	.875 - .999	5.875	0.875	0.468	$590.00
JL16CPD1000	1.000 – 1.124	6.000	1.000	0.468	$590.00
JL16CPD1125	1.125 – 1.499	6.250	1.250	0.468	$590.00
JL16CPD1500	1.500-2.250	6.500	1.500	.468	$670.00
*******All dimensions in the "SIZE" column set a range for that particular i.d. collet. An exact size must be selected for each collet purchased to + or - .001". Maximum Expansion - .020" I. D. Collet with Length Control larger that 2.250" diameter is special and must be designed upon request.
