J-LOC 5C Extra Long Expanding I. D. Collets

J-LOC 5C Extra Long Expanding I. D. Collets
"The Answer to Inside Diameter Workholding"

No Machining Necessary!
No assembly Necessary!
No Screws To Break!
Virtually As Rigid As Your O. D. Collets!
Only I.D. Collet That Works On Dead Length Collet Chucks!
Collet May Be Disassembled by Loosening One Screw!

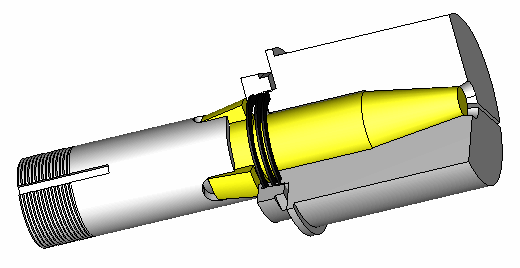

J-LOC 5C Extra Long
Expanding I. D. Collet

The Expansion Plug And Pressure Segments Are Titanium Nitride Coated for Long Life

*****All dimensions in the "SIZE" column set a range for that particular i.d. collet. An exact diameter size must be specified for each collet purchased to + or - .001". Maximum expansion .020"**
J-LOC PART NUMBER	*******SIZE THIS IS A SIZE RANGE THE ACTUAL SIZE MUST BE SPECIFIED TO + OR - .001"	O.A.L.	DEPTH	GAGE LENGTH	CLAMPING AREA	PRICE EACH USD
JL5CP750XL	.750 - .874	4.843	1.125	0.468	.573	$485.00
JL5CP875XL	.875 - .999	5.031	1.312	0.468	.656	$485.00
JL5CP1000XL	1.00 - 1.124	5.218	1.500	0.468	.750	$485.00
JL5CP1125XL	1.125 - 1.499	5.593	1.875	0.468	.938	$485.00
JL5CP1125XL2	1.500-2.124					$530.00
JL5CP1125XL3	2.125 - 3.500					$640.00
